Wireless Solar Battery Powered Security Camera System Mini NVR  with Screen Kit



Solar CCTV Wireless Kit.

Wireless Wifi Solar Battery Powered Security Camera System Mini Nvr  with Screen Kit

Features of mini NVR:
* H.265 + high compression ratio, reduce the storage space and transmission bandwidth;
* Built-in wireless network card, get rid of the network cable;
* Built-in speaker, intelligent voice broadcast and alarm;
* Regional motion detection, real-time push alarm information;
* Support multi-channel remote monitoring(mobile phone, PC client), view anytime, anywhere;
* 8-channel host comes standard with 4 cameras,can add 4 more cameras;
* Comes standard with four 1.6W solar panels. Once installed, never power off

Excluding Hard disk

Features of IPC:
* 3MP, HD image quality;
* Wifi connection、100% wireless;
* Fast wake up without disconnecting, Good signal with long transmission distance;
* Built-in two 21700 lithium batteries, long standby time;
* PIR+ intelligent detection, start recording quickly;
* Sound and light alarm, intelligent alert;
* Built-in MIC and speaker, sound and picture synchronization, two-way audio;
* IP65 waterproof rating,No fear of wind and rain.

Technical Specifications

Wireless NVR
Model K8508-W
Video and audio



Network audio and video input 8ch
Video and audio output


HDMI output 1ch,resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920x1080p, support audio output
Video coding standard H.264,H.265
Audio coding standard


Video and Audio codec Parameters


Video resolution 5MP/3MP/1080P/720P
Synchronous Playback 3MP@4ch / 5MP@2ch

Video Management


Video mode Timed recording、event recording
Playback mode Timed playback, event playback,Smart playback(SD card does not support smart playback)
Backup method U disk backup
Storage Maximum support capacity of 6TB hard disk / maximum support of 256G capacity SD card / cloud storage
wireless standard Wi-Fi 2.4G(IEEE802.11b/g/n)



Hard Disk Drive

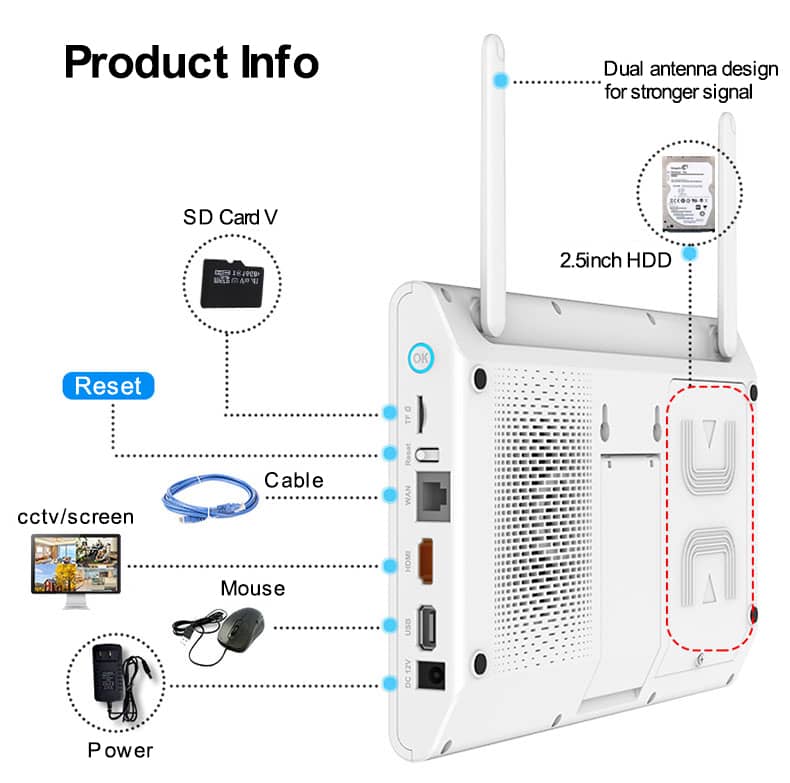

Network Interface


1 RJ45 10M/100M adaptive Ethernet port, built-in wireless Internet access function
USB interface 1 USB 2.0 interface
Audio port Built-in speaker
Recording light 1 recording light, indicate the recording status
Network light 1 network light, indicate P2P status
Button 1 reset button
Power Supply DC 12V2A
